Carton Making Machine Water Based Flexo Printing Machine for Carton Box Production
List
Carton Making Machine Water Based Flexo Printing Machine for Carton Box Production
Share This Product:
  • Description
  • Technical Parameters

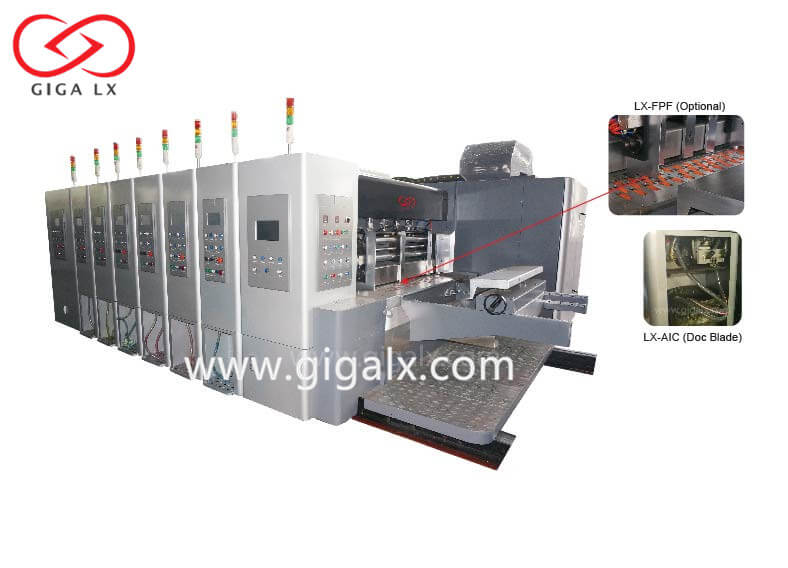

LX-608CN Full Computerized High Speed Flexo Printing Slotting & Die Cutting Machine

(Vacuum Suction Conveyer for Printer)


1.Vacuum suction transport, Whole Ceramic Roller

2.With automatic return to the origin and memory reset functions

3.Transmission structure with double oil pump circulating lubrication

4.Optional independent scoring unit

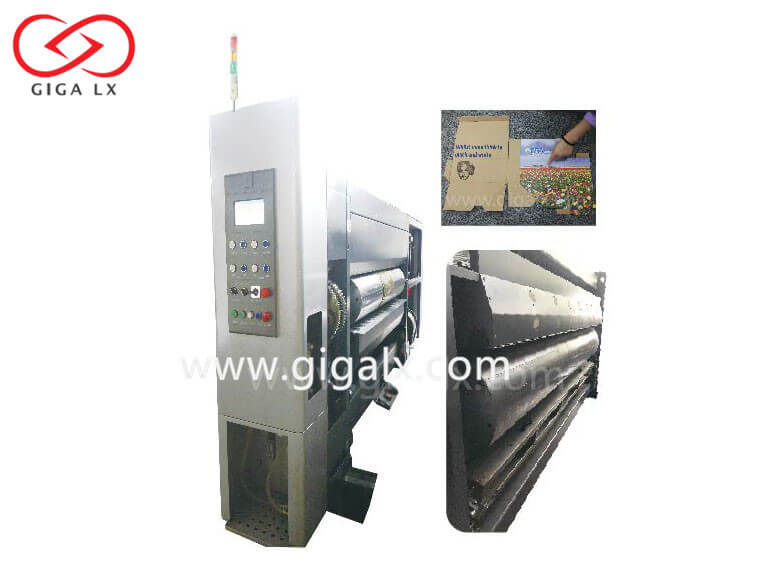

Printing Unit



1.Vacuum suction of printing department, can realize carton inside and outside printing 7colors;

2.Including ceramic anilox rolle;

3.7 colors printing available;

4.Chamber Doctor Blade system Optional;


Specification

1800/2000*1000

25000*1200/1600

2800*1200/1600

3200*1600

Max speed(Pcs/min)

300

300

250/180

180

Max feeding size(mm)

1800/2200*970

2500*1170/1570

2800*1170/1570

3200*1570

Min feeding size(mm)

650*320

650*350/450

650*350/450

650*450

Skip feeder size(mm)

1800/2000*1200

2500*1400/1800

2800*1400/1800

3200*1800

Feeding Depth(mm)

2~10

2~10

2~10

2~10

Max printing size(mm)

1750/2150*920

2450*1120/1520

2800*1120/1520

3150*1520

Print plate depth  (mm)

7.2

7.2

7.2

7.2

Min slotter interval (mm)

Positive cut (mm)

120*120*120*120

140*140*140*140

140*140*140*140

140*140*140*140

Reverse cut (mm)

200*80*200*80

200*80*200*80

240*80*240*80

240*80*240*80

Max die cutter size(mm)

1700/2100*920

2400*1120/1520

2700*1120/1520

3100*1520
